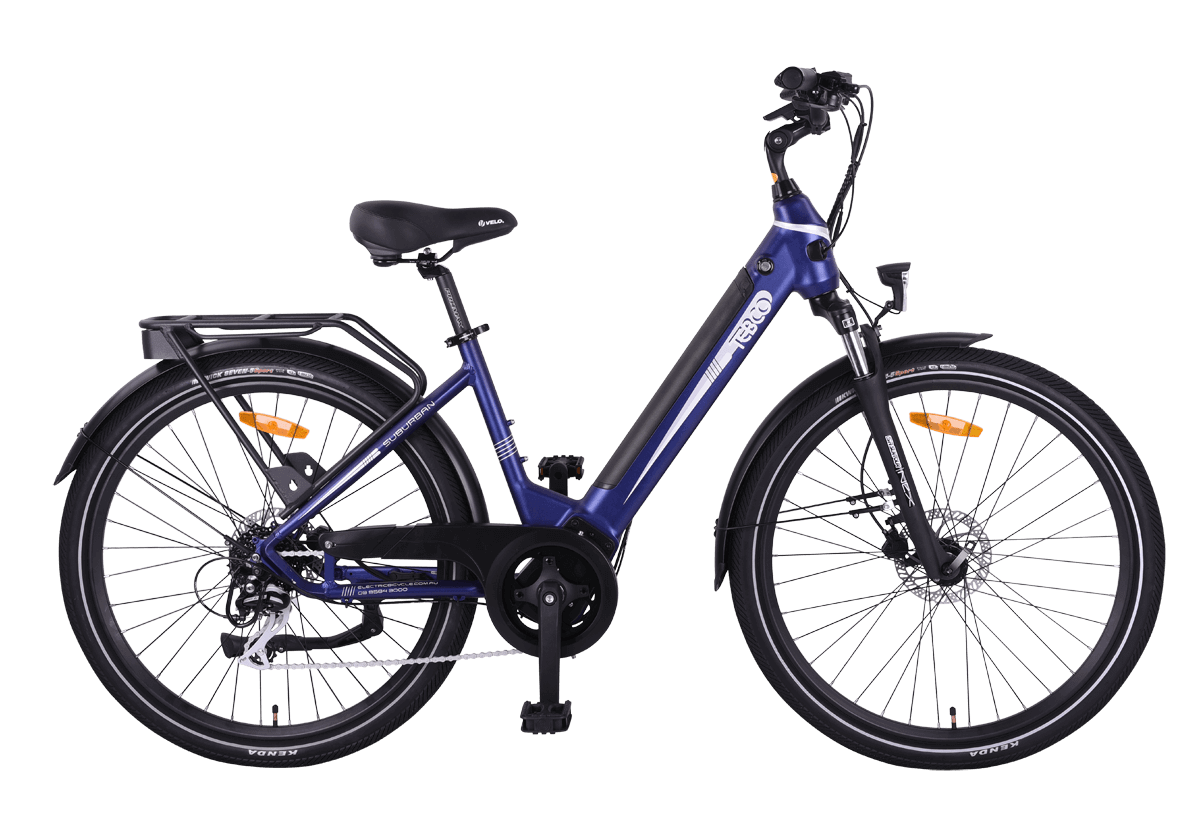

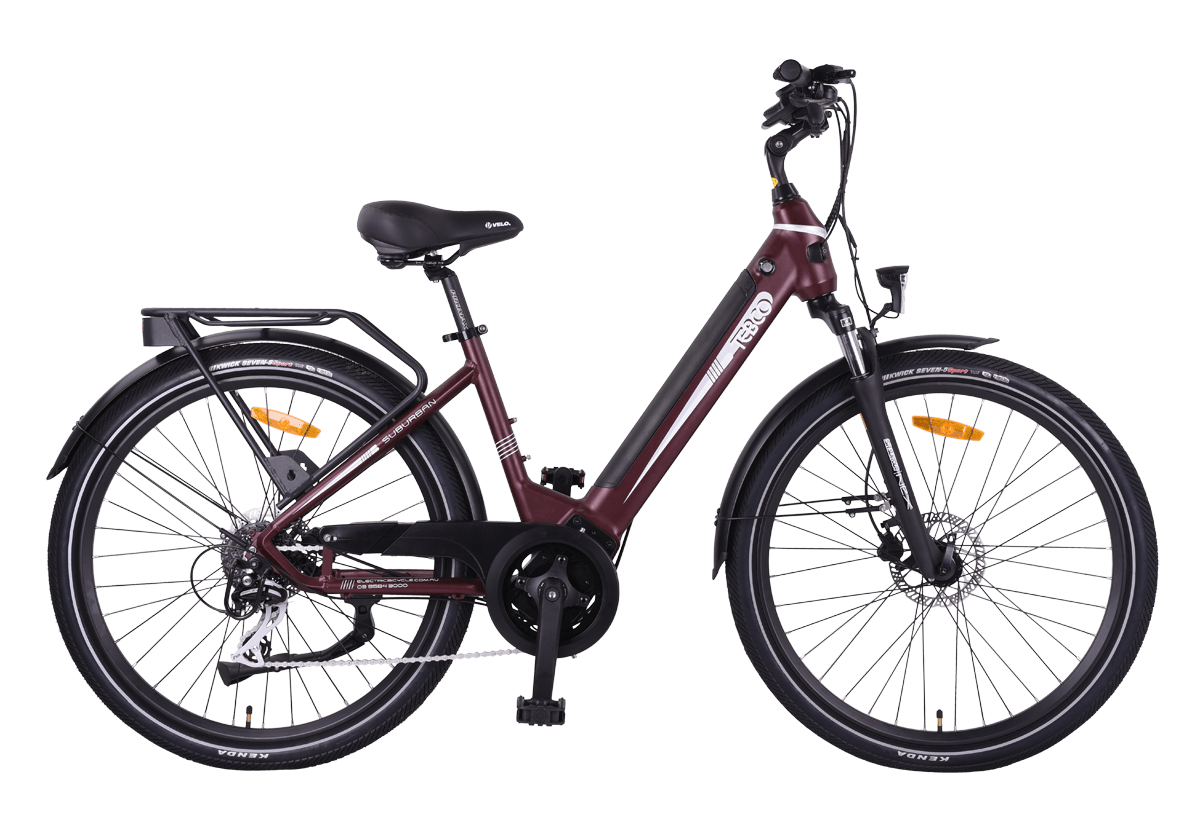

Suburban E Bike
Suburban E Bike

Suburban E Bike

TEBCO

Regular price $3,499.00 Sale

CLICK 'N' COLLECT
Collection in 1-7 days. More info »

CRUISING AT IT’S FINEST. STEP-THROUGH UNISEX FRAME. EFFORTLESS CRUISING PERFECT SUBURBAN RUNABOUT FOR SHOPPING AND SOCIAL OUTINGS.

FEATURES

  • 650B WHEELS / ALLOY FRAME
  • WEIGHT– 22KG INCLUDING BATTERY
  • MAX. SPEED 25KMH / MAX. RANGE 80KM
  • 250W DAPU MID DRIVE MOTOR
  • 36V 10.4AH SAMSUNG LITHIUM BATTERY
  • LATEST IN-FRAME BATTERY DESIGN
  • HIGH QUALITY 2.125 KENDA K1047 TYRES
  • 8 SPEED SHIMANO TRIGGER SHIFT GEARS
  • HIGH QUALITY 2.125IN KENDA K1047 TYRES
  • LCD SPEEDO BATTERY INDICATOR TRIP COMPUTER
  • HYDRAULIC DISC BRAKES FRONT AND REAR
  • COMFY VELO GEL SADDLE FOR ENHANCED RIDE



SPECIFICATIONS

MECHANICAL

Frame 6061 Grade Alloy
Wheel Size 650B 36H Front and Rear
Fork SUNTOUR NEX Allum Suspension
Handlebar ZOOM HB-T320
Stem PROMAX MQ-565S
Seatpost PROMAX SP-2003 & 27.2 x 400mm
Seat Clamp Alloy Quick Release 27.2mm
Saddle VELO VL-6100 GEL
Shifters SUNRACE DL500
Derailleur SHIMANO ARDTY500D
Rims POWER CIRCLE P23DM 36H Double Wall Alloy
Hubs PT-D112DSE 3/8*13*36*135*145
Hubs HX-D041DSE M9*13*36*108
Spokes 13g 2.2mm F / 12g 2.6mm R Stainless Steel
Tyres KENDA K1052 24in x 2.1in
Cranks PROMAX E44PP/32 170MM 44T
Pedals YONGHUA 8X
Chain KMC Z51/RB/140L
Brakes Front TEKTRO T 285 Hydraulic Disc
Brakes Rear TEKTRO T 285 Hydraulic Disc
Brake Levers TEKTRO T 285 Hydraulic Disc
Mudguards Black Plastic 24in x 65mm
Stand Chain Stay Side Mount Adjustable Alloy
Rear Rack Alloy 650B / 700C Pannier Compatible

ELECTRICAL

Motor DAPU MD250 MID Frame Mount 36V 250W
Efficiency Greater than 80%
Torque 95Nm - Integrated Torque Sensor
Controller DAPU - 15Amp Digital Internal Integration
Battery SAMSUNG 36V 10.4Ah 40pcs 18650 2600MAh
Battery Life Up to 800 recharges from flat
Battery Weight 2.4kg
Display Panel DAPU LCD High Resolution
Operation Controls Left Handlebar DAPU Compatible
Pedal Activation DAPU Motor Integration
Light Front BUCHEL LED 51252712 Static Illumination
Light Rear BUCHEL LED 51254523 Static Illumination
Charger Sans 36V 2Amp Lithium AU Compliant
Main Cable JULET 1T5 Waterproof Quick Release
Audible Warning HONKA HOOTA Black
Max Speed 25kmh
Max Range 80kmh 1:1 Pedal Assist
Bicycle Weight 24kg incl battery

SIZING

Seat Tube 450mm
Step Over 450mm
Max Seat Height 1060mm
Min Seat Height 800mm
Length 1850mm
Width 670mm
